Part 2 Cheat Sheet

latest update 2023-08-11

Introduction

In this topic a 'Cheat Sheet' is given, both as html page as well as a downloadable spreadsheet. The latter has the advantage of various sorting possibilities.

Included are the proposed extensions, as discussed in the topic 'Part 2 extended data model'. These are marked with (V2.0) and 'lci:' in the second column. The third column is a rough grouping of the entity types, mainly for sorting purposes.

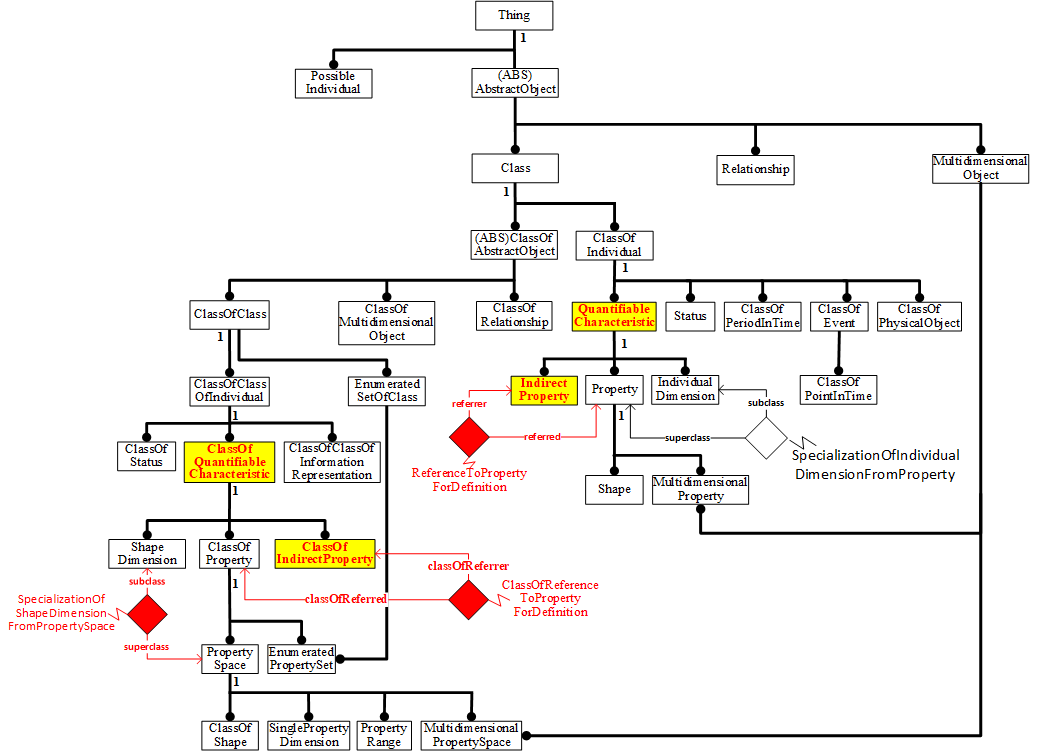

Also some fundamental model changes are proposed, for example see here. These will be formally proposed.

It is intended to give a complete overview of Part 2 + extensions, for later discussions about an update of ISO 15926-2.

Remarks "TO BE DEPRECATED" and "TO BE RENAMED" are based on the opinion and extensive usage experience of the author of this topic.

dm: = defined in ISO 15026-2 , lci: = defined in proposed extension of ISO 15926-2.
CLS = Class, IND = Individual, THG = Thing , REL = Relationship, CLS REL - ClassOfRelationship with CLS as object(s) of interest, IND REL = Relationship with IND as object(s) of interest.
Class name in blue = proposed to be deprecated, Class name in red = proposed to be added.

Download this Cheat Sheet here

ENTITY TYPE dm:|
lci:
SUPERTYPE DEFINITION EXAMPLE ATTRIBUTE #1 OBJECT OF
ATTRIBUTE #1
ATTRIBUTE #2 OBJECT OF
ATTRIBUTE #2
Thing dm: THG Is a Thing that does not exist in space-time. None (is an Abstract Object)
PossibleIndividual dm: THG Thing Is a Thing that exists in space and time, including:
* things where any of the space time dimensions are vanishingly small,
* those that are either all space for any time, or all time and any space,
* the entirety of all space time
* things that actually exist, or have existed,
* things that are fictional or conjectured and possibly exist in the past, present or future,
* temporal parts (states) of other individuals,
* things that have a specific position, but zero extent in one or more dimensions, such as points, lines, and surfaces.
In this context existence is based upon being imaginable within some consistent logic, including actual, hypothetical, planned, expected, or required individuals.
See also the topic Possible Worlds
AbstractObject dm: THG Thing Is a Thing that does not exist in space-time. None (is an Abstract Object)
Relationship dm: ABS AbstractObject Is an AbstractObject that indicates something that one Thing has to do with another; Note: Only classes of binary relationship are supported, if more are required use MultidimensionalObject. None, is abstract object, see instances of subtypes NO ATTRIBUTES
MultidimensionalObject dm: ABS AbstractObject Is an AbstractObject that is an ordered list of Thing. The significance of the MultidimensionalObject is determined by being a member of a ClassOfMultidimensionalObject that indicates the role played by each of its elements. Template signature elements (LIST [1:?] ) Thing
Class dm: ABS AbstractObject Is an AbstractObject that is an understanding of the nature of things and that divides things into those which are members of the class and those which are not according to one or more criteria.
The identity of a Class is ultimately defined by its members. No two classes have the same membership. However, a distinction must be made between a Class having members, and those members being known, so within an information system the members recorded may change over time, even though the true membership does not change.
Note: The membership of a Class is unchanging as a result of the spatio-temporal paradigm upon which this schema is based.
CENTRIFUAL PUMP, TEMPERATURE, etc
ArithmeticNumber dm: CLS ClassOfClass Is a ClassOfClass whose member classes have the same sign and count or magnitude. An ArithmeticNumber is the number itself, not any representation of the number. The number 2 and the number 2.0
Cardinality dm: CLS Class Is a Class that is the maximum and/or minimum number of times a thing can play a particular role in a ClassOfRelationship or ClassOfMultidimensionalObject. one to many maximumCardinality xsd:NonNegative Integer (optional) minimumCardinality xsd:NonNegative Integer (optional)
ClassOfAbstractObject dm: CLS Class Is a Class whose members classify members of AbstractObject. None (is an Abstract Object)
ClassOfActivity dm: CLS ClassOfArrangedIndividual Is a ClassOfArrangedIndividual whose members are instances of Activity. PUMPING (process activity), WELDING (human activity)
ClassOfArrangedIndividual dm: CLS ClassOfIndividual Is a ClassOfIndividual whose members are an arrangement of components. NOTE - In V2.0 most of its role has been taken over by ClassOfPhysicalObject, whith ClassOfArrangedIndividual used orthogonally to define any arrangement aspect. A process plant, with its layout, is both a ClassOfPhysicalObject, and a ClassOfArrangedIndividual.
ClassOfAtom dm: CLS ClassOfArrangedIndividual
(ClassOMatter in V2.0)
Is a ClassOfArrangedIndividual (ClassOfMatter in V2.0) whose members are Atoms. CALCIUM in general
ClassOfBiologicalMatter dm: CLS ClassOfArrangedIndividual
(ClassOMatter in V2.0)
Is a ClassOfArrangedIndividual (ClassOfMatter in V2.0) whose members are particular types of cell or aggregations of cells, and are members of Biological Matter. ENZYME in general
ClassOfClass dm: CLS ClassOfAbstractObject Is a ClassOfAbstractObject whose members are instances of Class. Used for grouping Classes. IEC 60079-0 COMBUSTIBLE MATERIAL CLASS
ClassOfClassOfIdentification dm: CLS ClassOfClassOfRepresentation Is a ClassOfClassOfRepresentation whose members are members of ClassOfIdentification. IDENTIFICATION BY ASSET NUMBER
ClassOfClassOfIndividual dm: CLS ClassOfClass Is a ClassOfClass whose members are instances of ClassOfIndividual. API 5L HEAT TREATED PIPE CLASS
ClassOfClassOfInformationRepresentation dm: CLS ClassOfClassOfIndividual Is a ClassOfClassOfIndividual that classifies instances of ClassOfInformationRepresentation with content, format, and/or language. API 610 CENTRIFUGAL PUMP DATASHEET IN ENGLISH AND ASCII
ClassOfCompositeMaterial dm: CLS ClassOfArrangedIndividual
(ClassOMatter in V2.0)
Is a ClassOfArrangedIndividual (ClassOfMatter in V2.0) whose members have a common arrangement of separable compounds, and are members of CompositeMaterial. Plywood, fibreglass, carbon fibre, wood, muscle, skin
ClassOfCompound dm: CLS ClassOfArrangedIndividual
(ClassOMatter in V2.0)
Is a ClassOfArrangedIndividual (ClassOfMatter in V2.0) whose members consist of arrangements of molecules of the same or different types, bound together by intermolecular forces. This includes both mixtures and alloys. Water, sulphuric acid, sand, limestone, steel
ClassOfDimensionForShape dm: CLS ClassOfClassOfRelationship Is a ClassOfClassOfRelationship that indicates that members of the ClassOfShape have a dimension that is a member of the ClassOfShapeDimension. Circles have diameters
ClassOfEvent dm: CLS ClassOfIndividual Is a ClassOfIndividual whose members are members of Event. COMPLETION EVENT
ClassOfExpressInformation
Representation
dm: CLS ClassOfInformation
Representation
Is a ClassOfInformationRepresentation that is defined by ISO 10303-11. Supertype of ExpressBinary, ExpressBoolean, ExpressInteger, ExpressLogical, ExpressReal, ExpressString. Any composite information representation.
ClassOfFeature dm: CLS ClassOfArrangedIndividual
(ClassOfPhysicalObject in V2.0)
Is a ClassOfArrangedIndividual (ClassOfPhysicalObject in V2.0) whose members are contiguous, non-separable parts of some PossibleIndividual and have an incompletely defined boundary. RAISED FACE ASME B16.5 NPS 1
ClassOfFunctionalObject dm: CLS ClassOfArrangedIndividual
(ClassOfPhysicalObject in V2.0)
Is a ClassOfArrangedIndividual (ClassOfPhysicalObject in V2.0) that indicates the function or purpose of an object. PUMP, VALVE, CONTAINER
ClassOfInanimatePhysicalObject dm: CLS ClassOfArrangedIndividual
(ClassOfPhysicalObject in V2.0)
Is a ClassOfArrangedIndividual (ClassOfPhysicalObject in V2.0) whose members are not living. Pump, car, moon (as Class), atom
ClassOfIndividual dm: CLS Class Is a Class whose members are instances of PossibleIndividual. None - do not instantiate as such
ClassOfInformationObject dm: CLS ClassOfArrangedIndividual
(ClassOfPhysicalObject in V2.0)
Is a ClassOfArrangedIndividual (ClassOfPhysicalObject in V2.0) whose members are members of zero or more ClassOfInformationRepresentation and of zero or more ClassOfInformationPresentation. EQUIPMENT SPECIFICATION, 4-20 mA SIGNAL, 3D PLANT MODEL, XML END TAG, etc, etc
ClassOfInformationPresentation dm: CLS ClassOfArrangedIndividual
(ClassOfPhysicalObject in V2.0)
Is a ClassOfArrangedIndividual (ClassOfPhysicalObject in V2.0) that distinguishes styles for presenting information. bold, italic, Times New Roman, 16pt, etc
ClassOfInformationRepresentation dm: CLS ClassOfArrangedIndividual
(ClassOfPhysicalObject in V2.0)
Is a ClassOfArrangedIndividual (ClassOfPhysicalObject in V2.0) that defines a pattern (an assembly of literals) that represents information. The contents of a document, the value of a tag number
ClassOfMatter (V2.0) lci: CLS ClassOfPhysicalObject (V2.0) Is a ClassOfPhysicalObject whose members are a material substance that constitutes the observable universe and, together with energy, forms the basis of all objective phenomena. At the most fundamental level, matter is composed of elementary particles known as quarks and leptons (the class of elementary particles that includes electrons). Quarks combine into protons and neutrons and, along with electrons, form atoms of the elements of the periodic table, such as hydrogen, oxygen, and iron. Atoms may combine further into molecules such as the water molecule, H2O. Large groups of atoms or molecules in turn form the bulk matter of everyday life. (Source: Encyclopedia Britannica) None, see instances of subtypes:
* ClassOfAtom,
* ClassOfBiologicalMatter,
* ClassOfCompositeMaterial,
* ClassOfCompound,
* ClassOfMolecule,
* ClassOfParticulateMaterial,
* ClassOfSubAtomicParticle,
* CrysallineStructure.
ClassOfMolecule dm: CLS ClassOfArrangedIndividual
(ClassOMatter in V2.0)
Is a ClassOfArrangedIndividual whose members are Molecules. H2O, H2SO4, and DNA
ClassOfNumber dm: CLS ClassOfClass Is a ClassOfClass whose members are members of ArithmeticNumber. PRIME NUMBER
ClassOfOrganism dm: CLS ClassOfArrangedIndividual
(ClassOfPhysicalObject in V2.0)
Is a ClassOfArrangedIndividual (ClassOfPhysicalObject in V2.0) whose members are living organisms. Human being, sheep, earthworm, oak tree, bacteria
ClassOfOrganization dm: CLS ClassOfArrangedIndividual
(ClassOfPhysicalObject in V2.0)
Is a ClassOfArrangedIndividual (ClassOfPhysicalObject in V2.0) whose members are instances of PhysicalObject that are composed of temporal parts of people and other assets, and are organised with a particular purpose. company, government, project team, country
ClassOfParticulateMaterial dm: CLS ClassOfArrangedIndividual
(ClassOMatter in V2.0)
Is a ClassOfArrangedIndividual (ClassOfMatter in V2.0) whose members are arranged amounts of super-molecular sized objects of the same or different types. pile of sand, sand and cement mix, bag of bolts, catalyst fill for a reactor
ClassOfPeriodInTime dm: CLS ClassOfIndividual Is a ClassOfIndividual whose members are instances of PeriodInTime. Monday, June
ClassOfPerson dm: CLS ClassOfOrganism Is a ClassOfOrganism whose members are people. Engineer, plant manager, student, male, female, senior citizen, adult, girl, and boy, where Engineer, plant manager, and student are specializations of instances of ClassOfFunctionalObject.
ClassOfPhysicalObject (V2.0) lci: CLS ClassOfIndividual Is a ClassOfIndividual whose members are PhysicalObject's. None, see instances of subtypes
ClassOfPointInTime dm: CLS ClassOfEvent Is a ClassOfEvent whose members are members of PointInTime. Midnight
ClassOfProperty dm: CLS ClassOfClassOfIndividual
(ClassOfQuantifyable
Characteristic in V2.0)
Is a ClassOfClassOfIndividual (ClassOfQuantifyableCharacteristic in V2.0) whose members are instances of Property.Properties can be measured, unlike IndirectProperties. None, see instances of (sub)subtypes:
* PropertySpace
* PropertyRange
* SinglePropertyDimension
* MultidimensionalPropertySpace
* EnumeratedPropertySet
ClassOfPropertySpace dm: CLS ClassOfClass Is a ClassOfClass whose members are members of PropertySpace. property curves, property areas, and property volumes of various dimensionality and degrees of freedom, and a pump performance curve.
ClassOfQuantifyableCharacteristic (V2.0) lci: CLS ClassOfClassOfIndividual Is a ClassOfClassOfIndividual whose members are members of either ClassOfProperty, ClassOfIndirectProperty, or ShapeDimension, and whose magnitude can be quantified. None, see instances of subtypes
ClassOfScale dm: CLS ClassOfClassOfRelationship Is a ClassOfClassOfRelationship whose members are instances of Scale; Examples: SI Units, Imperial Units. SI Units, Imperial Units
ClassOfShape dm: CLS PropertySpace Is a PropertySpace that has instances of Shape as its members. regular geometric forms such as line, circle, square, cylinder, sphere, and cone
ClassOfShapeDimension dm: CLS ClassOfClass Is a ClassOfClass that is a dimension of a ClassOfShape. DIAMETER, HEIGHT, WIDTH
ClassOfSpatialLocation (V2.0) lci: CLS ClassOfPhysicalObject (v2.0) Is a ClassOfPhysicalObject whose members are instances of SpatialLocation. CONSTRUCTION AREA, ELECTRIC FIELD, IEC 60079-10.1 GROUP IIA LOCATION
ClassOfStatus dm: CLS ClassOfClassOfIndividual Is a ClassOfClassOfIndividual whose members are a Status. FAILURE CONDITION, that has FAIL CLOSED, FAIL LOCKED, and FAIL OPEN as members
ClassOfStream (V2.0) lci: CLS ClassOfPhysicalObject (v2.0) Is a ClassOfPhysicalObject whose members are instances of Stream. FLUID STREAM, GAMMA RAY, INFORMATION STREAM
ClassOfSubAtomicParticle dm: CLS ClassOfArrangedIndividual
(ClassOMatter in V2.0)
Is a ClassOfArrangedIndividual (ClassOfMatter in V2.0) whose members are constituent particles of Atoms proton, electron, meson, neutron, positron, muon, quark, and neutrino
CrystallineStructure dm: CLS ClassOfArrangedIndividual
(ClassOMatter in V2.0)
Is a ClassOfArrangedIndividual (ClassOfMatter inV2.0) that is a form in which many simple elements and their natural compounds regularly aggregate by the operation of natural affinity: it has a definite internal structure, with the external form of a solid enclosed by a number of symmetrically arranged plane faces, and varying in simplicity from the cube to much more complicated geometric bodies. Specialize a Compound with, for example, AUSTENITIC, FERRITIC, or MARTENSITIC
DocumentDefinition dm: CLS ClassOfClassOfInformation
Representation
Is a ClassOfClassOfInformationRepresentation that defines, in generic terms, the content and/or structure of documents. The definition of the API 610 Centrifugal Pump Data Sheet
EnumeratedNumberSet dm: CLS ClassOfNumber AND
EnumeratedSetOfClass
Is a ClassOfNumber and an EnumeratedSetOfClass. The set of integer numbers {3,4,5}
EnumeratedPropertySet dm: CLS ClassOfProperty AND
EnumeratedSetOfClass
Is a ClassOfProperty and an EnumeratedSetOfClass whose members are an enumerated set of properties of the same SinglePropertyDimension or MultidimensionalPropertySpace. {115 Volt, 240 Volt}
EnumeratedSetOfClass dm: CLS ClassOfClass Is a ClassOfClass that is an enumerated set of the instances of Class. Enumerated means that the full set of members is specified. {Plastic, 1.2kg, frame}, {{A,B,C},{B,C,D},{C,D,E}}, and "electrical engineering classes for CFIHOS V1.5"
EnumeratedSetOfIndividual (V2.0) lci: CLS Class Is a Class that is an enumerated set of the instances of PossibleIndividual. Enumerated means that the full set of members is specified {myPump, John Doe, France}
ExpressBinary dm: CLS ClassOfExpressInformation
Representation
Is a ClassOfExpressInformationRepresentation that represents a binary value as defined in ISO 10303-11:1994, 8.1.7. Maps to XML Schema data type 'base64Binary'.
ExpressBoolean dm: CLS ClassOfExpressInformation
Representation
Is a ClassOfExpressInformationRepresentation that represents a Boolean value as defined in ISO 10303-11:1994, 8.1.5. Maps to XML Schema data type 'boolean'.
ExpressInteger dm: CLS ClassOfExpressInformation
Representation
Is a ClassOfExpressInformationRepresentation that represents an integer number as defined in ISO 10303-11:1994, 8.1.3. Maps to XML Schema data type 'integer'.
ExpressLogical dm: CLS ClassOfExpressInformation
Representation
Is a ClassOfExpressInformationRepresentation that represents a logical value as defined in ISO 10303-11:1994, 8.1.4. Is boolean + 'unknown'. TO BE DEPRECATED because no mapping to XML Schema data type available.
ExpressReal dm: CLS ClassOfExpressInformation
Representation
Is a ClassOfExpressInformationRepresentation that represents a real number as defined in ISO 10303-11:1994, 8.1.2. Maps to XML Schema data type 'float' or 'decimal'.
ExpressString dm: CLS ClassOfExpressInformation
Representation
Is a ClassOfExpressInformationRepresentation that represents a string as defined in ISO 10303-11:1994, 8.1.6. Maps to XML Schema data type 'string'.
IndividualDimension dm: CLS ClassOfIndividual
(QuantifyableCharacteristic in V2.0)
Is a ClassOfIndividual (QuantifyableCharacteristic in V2.0) whose members characterize a dimension of a particular PossibleIndividual. The set of lines that are each a diameter of a particular circle.
IntegerNumber dm: CLS ArithmeticNumber Is an ArithmeticNumber that is a number without a fractional component. 4 and -42
Language dm: CLS ClassOfClassOfInformation
Representation
Is a ClassOfClassOfInformationRepresentation whose members are all the information representations made in the language. English, French, C++ and Java
LeftNamespace dm: CLS Namespace Is a Namespace where the classOfPart is the left part of the classOfWhole. TO BE DEPRECATED, of academic interest only.
MultidimensionalNumber dm: CLS ArithmeticNumber AND
MultidimensionalObject
Is an ArithmeticNumber and a MultidimensionalObject. [3.2, 5.4, 55.6]
MultidimensionalNumberSpace dm: CLS NumberSpace AND
MultidimensionalObject
Is a NumberSpace and a MultidimensionalObject R3, being the space defined as being all the triples of real numbers (e.g. <1.0, 2.1, 5.4>).
MultidimensionalProperty dm: CLS Property AND
MultidimensionalObject
Is a Property that is also a MultidimensionalObject. A pump flow head characteristic. It consists of a continuum of Q, H property pairs, where Q is the flow rate and H is the flowing head difference. Each pair of properties Qa and Ha, where Qa is a particular flow rate and Ha a particular head, is a multidimensional property [Qa, Ha].
MultidimensionalPropertySpace dm: CLS PropertySpace AND
MultidimensionalObject
Is a PropertySpace and a MultidimensionalObject whose members are properties each of which maps to more than one number. Each property will consist of elements of the same property dimensions. A pump QH curve of flowrate and differential head.
MultidimensionalScale dm: CLS Scale AND
MultidimensionalObject
Is a Scale that is also a MultidimensionalObject. A [Celsius, seconds] scale is a MultidimensionalScale on which temperature variation over time can be plotted.
Namespace dm: CLS ClassOfArrangementOfIndividual Is a ClassOfArrangementOfIndividual where the classOfWhole and classOfPart are members of ClassOfInformationRepresentation and the part is the most significant part of the whole that is the namespace. TO BE DEPRECATED, of academic interest only.
NumberRange dm: CLS NumberSpace Is a NumberSpace that is one-dimensional. The number space -273.1 to +infinity is the NumberRange related to the Ceslsius Scale.
NumberSpace dm: CLS ClassOfNumber Is a ClassOfNumber that is a continuum. The integers from 1 to 5, and the reals from 0.000 to 1.000
ParticipatingRoleAndDomain dm: CLS RoleAndDomain AND
ClassOfIndividual
Is a RoleAndDomain and a ClassOfIndividual that indicates a participating role in an Activity.
PROPOSED IN V2.0:
Is a RoleAndDomain and a ClassOfPhysicalObject that indicates a participating role in an Activity.
PERFORMER and PUMP (= the 'Domain' PUMP in the'Role' of PERFORMER)
Phase dm: CLS ClassOfArrangedIndividual
(ClassOMatter in V2.0)
Is a ClassOfArrangedIndividual (ClassOfMatter in V2.0) based on the nature of the boundary behaviour of material resulting from its atomic and molecular bonding. It excludes types of internal structure such as crystalline. LIQUID COMPOUND, GAS COMPOUND, VAPOUR COMPOUND, and SOLID COMPOUND
Property dm: CLS ClassOfIndividual
(QuantifyableCharacteristic in V2.0)
Is a ClassOfIndividual (QuantifyableCharacteristic in V2.0) that is a member of a continuum of a ClassOfProperty. The Property may be quantified by mapping to a number on a scale; A member of a Property is a PossibleIndividual that has the same degree or magnitude of the quality or characteristic represented by the Property as other members. A particular degree of hotness can be represented as an instance of Property, it can be quantified by mapping it to a Celsius or Fahrenheit Scale.
PropertyRange dm: CLS PropertySpace Is a PropertySpace that is a continuous subset of a SinglePropertyDimension. -10C to +20C is a PropertyRange of temperature.
PropertySpace dm: CLS ClassOfProperty Is a ClassOfProperty whose members are a coherent continuum of Property. The set of temperature properties, known as 'TEMPERATURE'
PropertySpaceForClassOfShapeDimension dm: CLS ClassOfClassOfRelationship Is a ClassOfClassOfRelationship that indicates the PropertySpace that a ClassOfShapeDimension is from. Diameter' is a 'length' dimension.
QuantifyableCharacteristic (V2.0) lci: CLS ClassOfIndividual Is a ClassOfIndividual whose members are members of either Property, IndirectProperty, or IndividualDimension, and whose magnitude can be quantified. None, see instances of subtypes
RealNumber dm: CLS ArithmeticNumber Is an ArithmeticNumber that is a quantity that can be represented as an infinite decimal expansion. 3.2146
RepresentationForm dm: CLS ClassOfClassOfInformation
Representation
Is a ClassOfClassOfInformationRepresentation that distinguishes the form of representation. hexadecimal, text, script, symbol, picture, diagram, semaphore, Morse code, music score, MIDI file format, and XML
RepresentationOfGregorianDateAndUtcTime dm: CLS ClassOfInformation
Representation
Is a ClassOfInformationRepresentation whose members are representations of time using the UTC system of time identification as specified in ISO 8601:2000 together with the Gregorian system for representing dates. Maps to XML Schema data type 'dateTime'.
RightNamespace dm: CLS Namespace Is a Namespace where the classOfPart is the right part of the classOfWhole. TO BE DEPRECATED, of academic interest only.
Role dm: CLS RoleAndDomain Is a RoleAndDomain that indicates what some Thing has to do with an Activity, Relationship, or MultidimensionalObject. EMPLOYEE, COOLED OBJECT, DRIVER(role)
RoleAndDomain dm: CLS Class Is a Class that specifies the domain and role for an end of a ClassOfRelationship or ClassOfMultidimensionalObject. husband and man' and 'wife and woman'
Shape dm: CLS Property Is a Property that depends on constant relations of position and proportionate distance among all the points composing its outline or its external surface. CYLINDER(shape), ELLIPSE(shape), FRUSTUM(shape), HEXAGON(shape), HULL SHAPE
ShapeDimension dm: CLS ClassOfIndividual
(ClassOfQuantifyable
Characteristic in V2.0)
Is a ClassOfClassOfIndividual (ClassOfQuantifyableCharacteristic in V2.0) that is a set of IndividualDimension that defines an aspect of a Shape. a diameter of 5m, a height of 3mm, and a width of 10cm
SinglePropertyDimension dm: CLS PropertySpace Is a PropertySpace that is a single and complete continuum of properties each of which maps to a single number. Also referred to as Quantity. temperature, pressure, viscosity, and length
Status dm: CLS ClassOfIndividual Is a ClassOfIndividual that is a characteristic or quality that is described by discrete, unordered values. OPEN, PAINTED', APPROVED, OLD, NEW', WORN, HAZARDOUS, SAFE, DANGEROUS, RUSTY, and also 'happy', 'sad', etc
Template (V2.0) lci: CLS ClassOfInformation
Representation AND MultidimensionalObject
Is a ClassOfInformationRepresentation and a MultidimensionalObject that is a set comprising of a first-order logic predicates for which a definition is stated as an axiom, a template signature and a template axiom expansion, as defined in ISO 15926-7. None, see subtypes in Template Specifications
BoundaryOfNumberSpace dm: CLS REL Specialization Is a Specialization that indicates that a NumberSpace is a boundary to another NumberSpace. A plane in R3 and that is a boundary to the NumberSpace that is a cube in R3. subClass NumberSpace superClass NumberSpace
BoundaryOfPropertySpace dm: CLS REL Specialization Is a Specialization that indicates that a PropertySpace is a boundary to another PropertySpace. A maximum speed head flow curve is a boundary of the PropertySpace that corresponds to the pump operating envelope. subClass PropertySpace superClass PropertySpace
ClassOfApproval dm: CLS REL ClassOfRelationship Is a ClassOfRelationship whose members are members of Approval that indicates that members of the ClassOfIndividual are approvers in an Approval for the members of the Class that are approved. The ClassOfDefinition between an Equipment Item and the related Asset Requirements Class shall be approved by a Mechanical Engineering Manager. classOfApproved ClassOfRelationship classOfApprover ClassOfIndividual
ClassOfApprovalByStatus dm: CLS REL ClassOfRelationship Is a ClassOfRelationship that indicates a status of the approval that is independent of what is being approved by whom. It classifies an Approval relationship. The Approval relationship of a Classification relationship between pump P-101 and the related Asset Requirements Class can be classified with the ClassOfApprovalByStatus APPROVED FOR PROCUREMENT (AFP). NO ATTRIBUTES
ClassOfArrangementOfIndividual dm: CLS REL ClassOfCompositionOfIndividual Is a ClassOfCompositionOfIndividual whose members are instances of ArrangementOfIndividual. An ARRANGEMENT INTO A GROUP is an instance of ClassOfArrangementOfIndividual in which PhysicalObjects are made a member of a group for some purpose. classOfPart ClassOfIndividual classOfWhole ClassOfArranged
Individual
ClassOfAssemblyOfIndividual dm: CLS REL ClassOfArrangementOfIndividual Is a ClassOfArrangementOfIndividual whose members are instances of AssemblyOfIndividual. Any member of CENTRIFUGAL PUMP has one or more members of PUMP IMPELLER (where any member of TWO STAGE CENTRIFUGAL PUMP has two members of PUMP IMPELLER). classOfPart ClassOfIndividual classOfWhole ClassOfPhysicalObject
ClassOfAssertion dm: CLS REL ClassOfRelationship Is a ClassOfRelationship that describes the assertive nature of a member Relationship by classifying the latter. True or false or probable NO ATTRIBUTES
ClassOfCauseOfBeginningOf
ClassOfIndividual
dm: CLS REL ClassOfRelationship Is a ClassOfRelationship that indicates that a member of a ClassOfActivity causes the beginning of a member of a ClassOfIndividual. A member of the ClassOfActivity "car manufacturing" causes the Beginning of a member of the ClassOfInanimatePhysicalObject 'car'. classOfBegun ClassOfIndividual classOfCauser ClassOfActivity
ClassOfCauseOfEndingOf
ClassOfIndividual
dm: CLS REL ClassOfRelationship Is a ClassOfRelationship that indicates that a member of the ClassOfActivity causes the ending of a member of the ClassOfIndividual. A member of the ClassOfActivity "car demolishing" causes the Ending of a member of the ClassOfInanimatePhysicalObject 'car'. classOfCauser ClassOfActivity classOfEnded ClassOfIndividual
ClassOfClassification dm: CLS REL ClassOfRelationship Is a ClassOfRelationship whose members are members of Classification. A ClassOfClassification indicates that a member of the classOfClassified Class is classified by one or more members of the classOfClassifier . Diesel engines are polluting objects (or formally: Any member of DIESEL ENGINE is classified as POLLUTING OBJECT). classOfClassified Class classOfClassifier ClassOFClass
ClassOfClassOfComposition dm: CLS REL ClassOfClassOfRelationship Is a ClassOfClassOfRelationship whose members are instances of ClassOfCompositionOfIndividual. It indicates that a member of a member of the classOfClassOfPart is a part of a member of an instance of the classOfClassOfWhole. Members of members of FAIL SAFE EQUIPMENT CLASS, e.g. FAIL CLOSE VALVE, have a member of member of ACTUATOR FAIL ACTION CLASS, e.g. FAIL CLOSE ACTUATOR, as a part in an assembly. classOfClassOfPart ClassOfClassOf
Individual
classOfClassOf
Whole
ClassOfClassOf
Individual
ClassOfClassOfDefinition dm: CLS REL ClassOfClassOfRepresentation Is a ClassOfClassOfRepresentation whose members are members of ClassOfDefinition. Normative classOfPattern ClassOfClassOf
Information
Representation
classOfRepresented Class
ClassOfClassOfDescription dm: CLS REL ClassOfClassOfRepresentation Is a ClassOfClassOfRepresentation whose members are members of ClassOfDescription. Service description classOfPattern ClassOfClassOf
Information
Representation
classOfRepresented Class
ClassOfClassOfRelationship dm: CLS REL ClassOfClass Is a ClassOfClass whose members are instances of ClassOfRelationship. REQUIREMENT, with specializations; Example: Members of PRESSURE RELIEF VALVE are to be relatively located ABOVE the protected VESSEL, and this instance of ClassOfRelativeLocation is classified with the ClassOfClassOfRelationship FUNCTIONAL REQUIREMENT. NO ATTRIBUTES
ClassOfClassOfRelationshipWithSignature dm: CLS REL ClassOfClassOfRelationship
AND ClassOfRelationship
WithSignature
Is a ClassOfClassOfRelationship AND ClassOfRelationshipWithSignature with the purpose to allow other types of classes of relationship, not explicitly defined as entity data types in this part of ISO 15926, to be defined as reference data. Is MANUFACTURED BY classOfEnd1 RoleAndDomain classOfEnd2 RoleAndDomain
ClassOfClassOfRepresentation dm: CLS REL ClassOfClassOfRelationship Is a ClassOfClassOfRelationship whose members are instances of ClassOfRepresentationOfThing. Supertype of ClassOfClassOfDefinition, -Description, and -Identification. Use only when it is unclear which subtype applies or when a mix of subtypes applies. classOfPattern ClassOfClassOf
Information
Representation
classOfRepresented Class
ClassOfClassOfRepresentationTranslation dm: CLS REL ClassOfClassOfRelationship Is a ClassOfClassOfRelationship whose members are members of ClassOfRepresentationTranslation. ENGLISH to SPANISH classOfFirst ClassOfClassOf
Information
Representation
classOfSecond ClassOfClassOf
Information
Representation
ClassOfClassOfResponsibility
ForRepresentation
dm: CLS REL ClassOfClassOfRelationship Is a ClassOfClassOfRelationship whose members are members of ClassOfResponsibilityForRepresentation linking the controller to a set of representations. The PoscCaear organization controls the contents of their Reference Data Library. classOfClassOf
Controlled
ClassOfClassOf
Representation
controller PossibleIndividual
ClassOfClassOfUsageOfRepresentation dm: CLS REL ClassOfClassOfRelationship Is a ClassOfClassOfRelationship whose members are members of ClassOfUsageOfRepresentation linking the user to a set of representations. The definition of Weir pumps with Weir product specifications is used by the XYZ Corp. classOfClassOfUsed ClassOfClassOf
Representation
user PossibleIndividual
ClassOfCompositionOfIndividual dm: CLS REL ClassOfRelationship Is a ClassOfRelationship whose members are members of CompositionOfIndividual. Seawater has Salt as component classOfPart ClassOfIndividual classOfWhole ClassOfIndividual
ClassOfConnectionOfIndividual dm: CLS REL ClassOfRelationship Is a ClassOfRelationship whose members are members of ConnectionOfIndividual. It indicates that a member of the classOfSide1 ClassOfIndividual can be connected to a member of the classOfSide2 ClassOfIndividual. None, since this is an Abstract Class, and supertype of ClassOfDirectConnection and ClassOfIndirectConnection. classOfSide1 ClassOfIndividual classOfSide2 ClassOfIndividual
ClassOfContainmentOfIndividual dm: CLS REL ClassOfRelativeLocation Is a ClassOfRelativeLocation whose members are instances of ContainmentOfIndividual. It indicates that a member of the 'classOfLocator' ClassOfIndividual can contain a member of the 'classOfLocated' ClassOfIndividual. CRUDE OIL can be contained in a BARREL. classOfLocated ClassOfIndividual classOfLocator ClassOfIndividual
ClassOfDefinition dm: CLS REL ClassOfRepresentationOfThing Is a ClassOfRepresentationOfThing that indicates the 'pattern' is a definition of the 'represented' Class. The link between the pattern 'A <PUMP> is a <FunctionalObject> that is capable of <PUMPING>' and the Class 'PUMP'. pattern ClassOfInformation
Representation
represented Class
ClassOfDescription dm: CLS REL ClassOfRepresentationOfThing Is a ClassOfRepresentationOfThing that indicates the pattern is a description of the represented Thing. The link between the pattern 'This is an old bilge pump' and a particular pump. pattern ClassOfInformation
Representation
represented Class
ClassOfDirectConnection dm: CLS REL ClassOfConnectionOfIndividual Is a ClassOfConnectionOfIndividual whose members are members of DirectConnection. An ELECTRICAL WIRE can be connected to a TERMINAL. classOfSide1 ClassOfIndividual classOfSide2 ClassOfIndividual
ClassOfFeatureWholePart dm: CLS REL ClassOfArrangementOfIndividual Is a ClassOfArrangementOfIndividual whose members are instances of FeatureWholePart; Example: bolts have threads. BOLT has a THREAD Feature as a part.
ClassOfFunctionalMapping dm: CLS REL ClassOfRelationship Is a ClassOfRelationship that is a many to one mapping, a function; its domain is the input and its codomain is the set of Things to which the function is applied. MASS FLOW EQUATION, or FUNCTION XOR codomain Class domain Class
ClassOfIdentification dm: CLS REL ClassOfRepresentationOfThing Is a ClassOfRepresentationOfThing that indicates that the pattern is used to refer to the represented Thing (so: Class or PossibleIndividual) The link between the pattern 'P-101' and a particular pump pattern ClassOfInformation
Representation
represented Class
ClassOfIndirectConnection dm: CLS REL ClassOfConnectionOf
Individual
Is a ClassOfConnectionOfIndividual whose members are members of IndirectConnection. A pressure transmitter can be connected to an instrument connection point by means of tubing. classOfSide1 ClassOfIndividual classOfSide2 ClassOfIndividual
ClassOfIndirectProperty dm: CLS REL ClassOfRelationship
(ClassOfQuantifyable
Characteristic in V2.0)
Is a ClassOfRelationship(ClassOfQuantifyableCharacteristic in V2.0) that indicates that a member of the ClassOfIndividual can possess a member of the ClassOfProperty as an IndirectProperty of this type. Indirect properties are quantifyable characteristics that cannot be measured. MAWP - Max. Allowable Working Pressure classOfPossessor ClassOfIndividual propertySpace PropertySpace
ClassOfIndividualUsedInConnection dm: CLS REL ClassOfRelationship Is a ClassOfRelationship whose members are members of IndividualUsedInConnection. It indicates that a member of the ClassOfIndividual is used in a ClassOfConnectionOfIndividual. A BOLT SET is used in a FLANGED CONNECTION classOfConnection classOfConnectionOf
Individual
classOfUsage ClassOfIndividual
ClassOfIntendedRoleAndDomain dm: CLS REL ClassOfRelationship Is a ClassOfRelationship that indicates that a member of the ClassOfIndividual is intended to act as a member of the RoleAndDomain. Members of PUMP are intended to play the RoleAndDomain 'PERFORMER and PUMP' in a member of PUMPING. classOfPlayer ClassOfIndividual played RoleAndDomain
ClassOfInvolvementByReference dm: CLS REL ClassOfRelationship Is a ClassOfRelationship whose members are instances of InvolvementByReference. Specifications are involved by reference as COMMITTING DOCUMENT & SPECIFICATION in a PROCUREMENT Activity. classOfInvolved RoleAndDomain classOfInvolver ClassOfActivity
ClassOfIsomorphicFunctionalMapping dm: CLS REL ClassOfFunctionalMapping Is a ClassOfFunctionalMapping that is isomorphic DEGREE CELSIUS (an instance of subtype Scale); The natural logarithm function codomain Class domain Class
ClassOfLeftNamespace dm: CLS REL ClassOfNamespace Is a ClassOfNamespace that indicates that the classOfPart is the left namespace for the members of the classOfClassOfWhole. TO BE DEPRECATED, of academic interest only. classOfClassOf Whole ClassOfClassOf
Information
Representation
classOfPart ClassOfInformation
Representation
ClassOfLifecycleStage dm: CLS REL ClassOfRelationship Is a ClassOfRelationship whose members are members of LifecycleStage . TO BE RENAMED, following renaming of LifecycleStage NO ATTRIBUTES
ClassOfMultidimensionalObject dm: CLS REL ClassOfAbstractObject Is a ClassOfAbstractObject whose members are instances of MultidimensionalObject. The role played by each 'element' attribute in the classified MultidimensionalObject is specified at the same position in the 'roles' LIST. Consider it as a kind of ClassOfList. p1 AND 'NORMAL INLET PRESSURE IN kPa' defining a variable p1 in an equation; Details in https://15926.org/topics/equations-and-variables/index.htm and https://15926.org/home/templatespecs/CL-DEFN-640.xml roles LIST [1:?] of
RoleAndDomain
(other attributes
to be omitted,
appeared to
be of no use)
ClassOfNamespace dm: CLS REL ClassOfClassOfRelationship Is a ClassOfClassOfRelationship that indicates that a ClassOfInformationRepresentation is the classOfPart used as a namespace for each member of a ClassOfClassOfInformationRepresentation that is the classOfClassOfWhole. TO BE DEPRECATED, of academic interest only. classOfClassOfWhole ClassOfClassOf
Information
Representation
classOfPart ClassOfInformation
Representation
ClassOfParticipation dm: CLS REL ClassOfCompositionOfIndividual Is a ClassOfCompositionOfIndividual that indicates a member of an instance of ParticipatingRoleAndDomain participates in a member of an instance of ClassOfActivity. Members of 'PERFORMER & PUMP' participate in members of 'PUMPING'. classOfPart Participating
RoleAndDomain
classOfWhole ClassOfActivity
ClassOfPossibleRoleAndDomain dm: CLS REL ClassOfRelationship Is a ClassOfRelationship that indicates the RoleAndDomain that can be played by a member of the ClassOfIndividual, in some Activity. Members of PUMP can play the role of FASTENER & ANCHOR (although they are not intended to do so). classOfPlayer ClassOfIndividual played RoleAndDomain
ClassOfRecognition dm: CLS REL ClassOfRelationship Is a ClassOfRelationship that indicates that a member of a ClassOfActivity may result in the recognition of a member of a Class. Members of INSPECTION Activity can recognize a Classification of the inspected object with the applicable Asset Requirements Class (i.e. the object complies with the requirements). classOfRecognized ClassOfRelationship classOfRecognizing ClassOfActivity
ClassOfReferenceToPropertyForDefinition (V2.0) lci: CLS REL ClassOfClassOfRelationship Is a ClassOfClassOfRelationship that indicates that a member of the ClassOfProperty is used by reference for the definition of a member of ClassOfQuantifyableCharacteristic. ClassOfIndirectProperty MAWP - Max. Allowable Working Pressure is defined with reference to PRESSURE, and ShapeDimension 'Diameter of 5m' to LENGTH. classOfReferred ClassOfProperty classOfReferrer ClassOfQuantifyable
Characteristic
ClassOfRelationship dm: CLS REL ClassOfAbstractObject Is a ClassOfAbstractObject whose members are members of Relationship. None, see instances of subtypes end1Cardinality Cardinality
(optional)
end2Cardinality Cardinality
(optional)
ClassOfRelationshipWithSignature dm: CLS REL ClassOfRelationship
AND Relationship
Is a ClassOfRelationship and a Relationship that may have a RoleAndDomain specified for each end. View this as a ClassOfOtherRelationship. Is DELIVERABLE OF, IS INSPECTED BY classOfEnd1 RoleAndDomain classOfEnd2 RoleAndDomain
ClassOfRelativeLocation dm: CLS REL ClassOfRelationship ClassOfRelationship whose members are instances of RelativeLocation. ABOVE, where the members of 'classOfLocated' are above the members of the 'classOfLocator' classOfLocated ClassOfIndividual classOfLocator ClassOfIndividual
ClassOfRepresentationOfThing dm: CLS REL ClassOfRelationship Is a ClassOfRelationship that indicates that all members of the 'pattern' ClassOfInformationRepresentation represent the 'represented' Thing. Supertype of ClassOfDefinition, -Description, and -Identification. Use only when it is unclear which subtype applies or when a mix of subtypes applies. pattern ClassOfInformation
Representation
represented Class
ClassOfRepresentationTranslation dm: CLS REL ClassOfRelationship Is a ClassOfRelationship that indicates the translation of two instances of ClassOfInformationRepresentation. DUTCH-TO-GERMAN LANGUAGE classOfFirst ClassOfInformation
Representation
classOfSecond ClassOfInformation
Representation
ClassOfResponsibilityFor
Representation
dm: CLS REL ClassOfRelationship Is a ClassOfRelationship whose members indicate that a PossibleIndividual (usually an organization) deems that members of the pattern can be used as representations of the represented thing. The PoscCeasar organization controls the text defining the class PUMP in their Reference Data Library. classOfControlled ClassOfRepresentation
OfThing
controller PossibleIndividual
ClassOfRightNamespace dm: CLS REL ClassOfNamespace Is a ClassOfNamespace that indicates that the classOfPart is the right namespace for the members of the classOfClassOfWhole. TO BE DEPRECATED, of academic interest only. classOfPart ClassOfInformation Representation classOfClassOf Whole ClassOfClassOf
Information
Representation
ClassOfScaleConversion dm: CLS REL ClassOfIsomorphic
FunctionalMapping
Is a ClassOfIsomorphicFunctionalMapping that defines a conversion between two different scales of units used for the quantification of properties. DEGREES FAHRENHEIT TO DEGREES CELSIUS codomain Scale domain Scale
ClassOfSpecialization dm: CLS REL ClassOfRelationship Is a ClassOfRelationship whose members are instances of Specialization. It indicates that a member of the classOfSubclass is a subclass of a member of the classOfSuperclass. Subclasses of API 610 CENTRIFUGAL PUMP CLASS are specializations of subclasses of PROCESS EQUIPMENT CLASS. classOfSubclass ClassOfClass classOfSuperclass ClassOfClass
ClassOfTemporalSequence dm: CLS REL ClassOfRelationship Is a ClassOfRelationship where the sequence is of a temporal nature. Tank emptying precedes Tank cleaning. classOfPredecessor ClassOfIndividual classOfSuccessor ClassOfIndividual
ClassOfTemporalWholePart dm: CLS REL ClassOfCompositionOfIndividual Is a ClassOfCompositionOfIndividual whose members are members of TemporalWholePart. classOfPart' P&ID PD43738-rev1 is a class of temporal part of the 'classOfWhole' master document P&ID PD43738. classOfPart ClassOfIndividual classOfWhole ClassOfIndividual
ClassOfUsageOfRepresentation dm: CLS REL ClassOfRelationship Is a ClassOfRelationship whose members indicate that a PossibleIndividual (usually an organization) reads or otherwise uses members of the pattern as a representation of the represented thing. The definition for STEAM TURBINE in ISO 10437:2003 is used by CFIHOS. classOfUsed ClassOfRepresentation
OfThing
user PossibleIndividual
CoordinateSystem dm: CLS REL MultidimensionalScale Is a MultidimensionalScale for locating and relating a PossibleIndividual in an n-dimensional space in which arbitrary geometric transformations are valid. The UTM coordinate system, the XYZ site coordinate system codomain
domain
NumberSpace
PropertySpace
elements LIST [1:?] of Thing
Definition dm: CLS REL RepresentationOfThing Is a RepresentationOfThing that indicates that the Class is defined by the sign PossibleIndividual. A 'represented' Radioactive Material Class is marked with the IAEA sign for radiation (a physical instance of it plays the role of a "sign").
NOTE - only classes can be defined.
represented Class sign PossibleIndividual
DifferenceOfSetOfClass dm: CLS REL FunctionalMapping Is a FunctionalMapping that indicates that the membership of the 'result' Class is the difference between the membership of the union of the classes that are members of the 'EnumeratedSetOfClass' and their intersection. The difference of the members of EnumeratedSetOfClass {{A,B,C},{B,C,D},{C,D,E}} is {A,B,D,E}. input EnumeratedSet
OfClass
result Class
DimensionOfShape dm: CLS REL ClassOfClassOfRelationship Is a ClassOfClassOfRelationship that indicates that members of the ShapeDimension are dimensions of the Shape members. The sets of 10m lines that are diameters of 10m circles dimension ShapeDimension shape Shape
FunctionalMapping dm: CLS REL Relationship Is a Relationship that indicates that the input gave the result as determined by the classifying ClassOfFunctionalMapping. The mapping of [5, 3] to 2, classified by the function FUNCTION SUB. input Class result Class
IntersectionOfSetOfClass dm: CLS REL FunctionalMapping Is a FunctionalMapping that indicates that the result Class consists of those members of the members of the EnumeratedSetOfClass that are common to each class. The intersection of the members of EnumeratedSetOfClass {{A,B,C},{B,C,D},{C,D,E}} is {C}. input EnumeratedSet
OfClass
result Class
LowerBoundOfNumberRange dm: CLS REL Classification Is a Classification that indicates an ArithmeticNumber is the lowest value in a NumberRange. 3.1 is the lower bound of the range [3.1 to 5.3]. classified ArithmeticNumber classifier NumberRange
LowerBoundOfPropertyRange dm: CLS REL Classification Is a Classification that indicates that a Property is the lower bound of a PropertyRange. 10 degrees Celsius is the lower bound of the range degrees 10 to 20 Celsius. classified Property classifier PropertyRange
MultidimensionalObject dm: CLS AbstractObject Is an AbstractObject that is an ordered list of Thing. The significance of the MultidimensionalObject is determined by being a member of a ClassOfMultidimensionalObject that indicates the role played by each of its elements. Template signature elements (LIST [1:?]) Thing
PropertyForShapeDimension dm: CLS REL ClassOfRelationship Is a ClassOfRelationship that indicates that the members of the ShapeDimension are of the Property. A 10m diameter is a 10m length. property Property shapeDimension ShapeDimension
PropertyQuantification dm: CLS REL FunctionalMapping Is a FunctionalMapping whose members map a Property to an ArithmeticNumber, where the applicable Scale classifies this Relationship. Note: the actual representation of the number is done by linking the ArithmeticNumber to a ClassOfExpressInformationRepresentation via a ClassOfIdentification. The Pressure in Vessel V-101 is quantified with 1050 on the kPa Scale. input Property result ArithmeticNumber
ReferenceToPropertyForDefinition (V2.0) lci: CLS REL ClassOfRelationship Is a ClassOfRelationship that indicates that a member of the Property is used by reference for the definition of a member of IndirectProperty. IndirectProperty Average temperature of 21.5 degrees Celsius refers to temperature of 21.5 degrees Celsius for its definition. referred Property referrer IndirectProperty
Scale dm: CLS REL ClassOfIsomorphic
FunctionalMapping
Is a ClassOfIsomorphicFunctionalMapping whose members are members of PropertyQuantification. It indicates the NumberSpace a PropertySpace maps to for the Scale in question. The Celsius scale relates to the ClassOfNumber [-273, inf] and the ClassOfProperty 'Temperature'. codomain NumberSpace domain PropertySpace
Specialization dm: CLS REL Relationship Is a Relationship that indicates that all members of the subclass are members of the superclass. Specialization is transitive. CENTRIFUGAL PUMP is a Specialization of PUMP. subclass Class superclass Class
SpecializationByDomain dm: CLS REL Specialization Is a Specialization that indicates that the member of the RoleAndDomain is a Specialization of the 'domain' Class (i.e. the instance of RoleAndDomain is a 'domain' Class in a Role). MANUFACTURER(role) AND COMPANY is a specialization of the domain 'COMPANY'. subclass RoleAndDomain superclass Class
SpecializationByRole dm: CLS REL Specialization Is a Specialization that indicates that the RoleAndDomain is of the Role indicated by the superclass. MANUFACTURER(role) AND COMPANY is a specialization of the Role 'MANUFACTURER(role)'. subclass RoleAndDomain superclass Role
SpecializationOfIndividualDimension
FromProperty
dm: CLS REL Specialization Is a Specialization that indicates the members of the IndividualDimension are members of the Property. a diameter of 10m is a specialization of a length of 10m. subclass IndividualDimension superclass Property
UnionOfSetOfClass dm: CLS REL FunctionalMapping Is a FunctionalMapping that indicates that the membership of the result Class is the union of the members of the EnumeratedSetOfClass classes. The union of the members of EnumeratedSetOfClass {{A,B,C},{B,C,D},{C,D,E}} is {A,B,C,D,E}. input EnumeratedSet
OfClass
result Class
UpperBoundOfNumberRange dm: CLS REL Classification Is a Classification that indicates an ArithmeticNumber is the highest value in a NumberRange. 5.3 is the upper bound of the range [3.1 to 5.3]. classified ArithmeticNumber classifier NumberRange
UpperBoundOfPropertyRange dm: CLS REL Classification Is a Classification that indicates that a Property is the upper bound of a PropertyRange. 20 Celsius is the upper bound of the range 10 to +20 Celsius. classified Property classifier PropertyRange
Activity dm: IND PossibleIndividual Is a PossibleIndividual that brings about change by causing the Event that marks the Beginning, or the Event that marks the Ending of a PossibleIndividual. An Activity consists of the temporal parts of those members of PossibleIndividual that participate in the Activity. The participating temporal parts will be classified by the ParticipatingRoleAndDomain that indicates the role of the temporal part in the Activity. Pumping a fluid with a mechanical pump
ActualIndividual dm: IND PossibleIndividual Is a PossibleIndividual that is a part of the space-time continuum that we inhabit. It exists in the present, past, or future of our universe, as opposed to some imagined universe. The Eiffel Tower
ArrangedIndividual dm: IND PossibleIndividual Is a PossibleIndividual that has parts that play distinct roles with respect to the whole. The qualities of an ArrangedIndividual are distinct from the qualities of its parts. Practically all members of ARTEFACT (that is the reason of it hardly ever being used)
Atom (V2.0) lci: IND Matter (V2.0) Is a Matter that is is the defining structure of an element, which cannot be broken by any chemical means. A typical Atom consists of a nucleus of positively-charged protons and electrically neutral neutrons with negatively-charged electrons orbiting this nucleus. The number of protons defines the identity of an atom or its element. Individual occurence of CALCIUM atom.
BiologicalMatter (V2.0) lci: IND Matter (V2.0) Is a Matter that is:
an organic matter that has come from a once-living Organism,
a composed of organic compounds
a chemical substance present or produced in a living organism
a biomolecule, a molecule present in a living organism
a biogenic substance, a chemical substance produced by a living organism.
Individual occurence of ENZYME
CompositeMaterial (V2.0) lci: IND Matter (V2.0) Is a Matter that is a material made from two or more constituent materials with significantly different physical or chemical properties that, when combined, produce a material with characteristics different from the individual components, where those individual components remain separate and distinct within the finished structure. ASPHALT SOFTBOARD, CLAD METAL
Compound (V2.0) lci: IND Matter (V2.0) Is a Matter that is a substance formed when two or more chemical elements are chemically bonded together. The elements in any compound are always present in fixed ratios. Compounds can be decomposed chemically into their constituent elements. CHLORIDE, ALLOY 20CB, BUTANE COMPOUND
Event dm: IND PossibleIndividual Is a PossibleIndividual with zero extent in time. An Event is the temporal boundary of one or more PossibleIndividuals, although there may be no knowledge of these PossibleIndividuals. This instance of STARTING EVENT marked the beginning of a temporal part of myPump in an OPERATING STATE.
Feature (V2.0) lci: IND PhysicalObject Is a PhysicalObject that is a contiguous, non-separable contiguous part of some PhysicalObject and has an incompletely defined boundary. A RAISED FACE of a FLANGE where the gasket surface is raised above the bolting circle face.
FunctionalObject (V2.0) lci: IND PhysicalObject Is a PhysicalObject that has a function or purpose. PUMP, RECORDER, PORT, ACCESS ENABLER
FunctionalPhysicalObject dm: IND PhysicalObject Is a PhysicalObject that has functional, rather than material, continuity as its basis for identity. Adjacent temporal parts of a FunctionalPhysicalObject need not have common matter or energy, provided the matter or energy of each temporal part fulfils the same function. TO BE DEPRECATED because of the introduction of the concept of Possible Worlds, see , where the FunctionalPhysicalObject has become a PhysicalObject and a NonActualIndividual in a Design World.
InanimatePhysicalObject (V2.0) lci: IND PhysicalObject Is a PhysicalObject that is not living, lacking all characteristics of an Organism. myCar, the moon
InformationObject (V2.0) lci: IND PhysicalObject Is a PhysicalObject that is a member of zero or more instances of ClassOfInformationRepresentation and of zero or more instances of ClassOfInformationPresentation. The copy of my newspaper in my mail box; or: a numbered copy of the contract papers.
MaterializedPhysicalObject dm: IND PhysicalObject Is a PhysicalObject that has matter and/or energy continuity as its basis for identity. Matter or energy continuity requires some matter or energy to be common to adjacent temporal parts of the MaterializedPhysicalObject. Replacement of some components from time to time does not create a new identity. TO BE DEPRECATED because of the introduction of the concept of Possible Worlds, see Possible Worlds, where the MaterializedPhysicalObject has become a PhysicalObject and a ActualIndividual in the real world around us.
Matter (V2.0) lci: IND PhysicalObject Is a PhysicalObject whose members are members of either ClassOfBiologicalMatter, ClassOfCompositeMaterial, ClassOfCompound, ClassOfParticulateMaterial, ClassOfMolecule, ClassOfAtom, or ClassOfSubAtomicParticle None, see instances of subtypes of given classes.
Molecule (V2.0) lci: IND Matter (V2.0) Is a Matter that is the smallest unit (particle) of a compound that has the physical and chemical properties of that compound. Molecules consist of one or more atoms joined together by covalent (chemical) bonds. H2O, H2SO4, and DNA
NonActualIndividual (V2.0) lci: IND PossibleIndividual Is a PossibleIndividual that exists in a possible world that is not the actual world. TO BE ADDED because of the introduction of the concept of Possible Worlds, see Posssible Worlds, where the FunctionalPhysicalObject has become a PhysicalObject and a NonActualIndividual in a Design World.
Organism (V2.0) lci: IND PhysicalObject Is a PhysicalObject that is a living Thing that can react to stimuli, reproduce, grow, and maintain homeostasis. An instance of human being, sheep, earthworm, oak tree, bacteria
Organization (V2.0) lci: IND PhysicalObject Is a PhysicalObject that is composed of temporal parts of people and other assets, and is organized with a particular purpose. The XYZ Corporation, today's day shift, South Korea
ParticulateMaterial (V2.0) lci: IND Matter (V2.0) Is a Matter that is an arranged amount of super-molecular sized objects of the same or different types. DUST, GRAVEL, GRIT, POWDER, SAND
PeriodInTime dm: IND PossibleIndividual Is a PossibleIndividual that is all space for part of time, a temporal part of the universe. July 2020 or: The period described by UTC 2020-11-21T06:00 to UTC 2020-11-21T11:53
Person (V2.0) lci: IND Organism (V2.0) Is an Organism of the species Homo Sapiens. John Doe
PhysicalObject dm: IND PossibleIndividual Is a PossibleIndividual that is a distribution of matter, energy, or both.
PROPOSED IN V2.0:
Is a PossibleIndividual that is a collection of matter within a defined contiguous boundary in three-dimensional space. The boundary must be defined and identified by the properties of the material. The boundary may change over time.
A piece of metal, a tree, a light beam, a distillation column, the sun, the Milky Way, John Doe
PointInTime dm: IND Event Is an Event that is the whole space extension with zero extent in time. UTC 2020-11-21T06:00
SpatialLocation dm: IND PhysicalObject Is a PhysicalObject that has continuity of relative position. geographic datum, license block, construction area, country, air corridor, maritime traffic zone, hazard control zone
Stream dm: IND PhysicalObject Is a PhysicalObject that is material or energy moving along a path, where the path is the basis of identity and may be constrained. The stream consists of the temporal parts of those things that are in the stream whilst they are in it. a LIQUID STREAM, a DATA STREAM
SubAtomicParticle (V2.0) lci: IND Matter (V2.0) Is a Matter that is a constituent particle of an Atom. a proton, an electron
WholeLifeIndividual dm: IND PossibleIndividual Is a PossibleIndividual that is a member of a ClassOfIndividual, and is not a temporal part of any other PossibleIndividual that is also a member of the same ClassOfIndividual. A WholeLifeIndividual includes its past and future. All individual objects that exist in past, present and future.
Approval dm: IND REL Relationship Is a Relationship that indicates that a Relationship has been approved by a PossibleIndividual that is an approver. Care should be taken as to what is approved. It will not say that a pump is approved, but information via a Relationship is. The inspector approves the Classification of pump, with Serial Number ke473, with the Requirements Class, defined in Pump Specification PK-4538-rev2 approver PossibleIndividual approved Relationship
ArrangementOfIndividual dm: IND REL CompositionOfIndividual Is a CompositionOfIndividual that indicates that the part is a part of an ArrangedIndividual. The temporal extent of the part is that of the whole.An ArrangementOfIndividual may be an AssemblyOfIndividual.The term "arranged" implies that the part has a particular role with respect to the whole. A plant item as part of a plant layout part PossibleIndividual whole ArrangedIndividual
AssemblyOfIndividual dm: IND REL ArrangementOfIndividual Is an ArrangementOfIndividual that indicates that the part is connected directly or indirectly to other parts of the whole. The parts and wholes are super-molecular objects. A pump has an impeller part PossibleIndividual whole ArrangedIndividual
Beginning dm: IND REL TemporalBounding Is a TemporalBounding that marks the temporal start of a PossibleIndividual by an Event. A 'Pump started' Event causes the beginning of 'temporal part of myPump is in operation' part Event whole PossibleIndividual
CauseOfEvent dm: IND REL Relationship Is a Relationship that indicates that the caused Event is caused by the causer Activity. Pushing the start button causes the Event 'Pump started'. caused Event causer Activity
Classification dm: IND REL Relationship Is a Relationship that indicates that the classified Thing is a member of the classifier Class by complying with the criteria for membership of that Class. Classification is not transitive. TURBINE is a ROTATING EQUIPMENT, or: John Doe is a WELDER. classified Thing (so either PossibleIndividual or Class) classifier Class
ClassOfRelationshipWithRelatedEnd1 dm: IND REL ClassOfRelationship Is a ClassOfRelationship where a particular Thing is 'related' in a subtype of ClassOfRelationship, rather than the members of the Class normally referred to from the classOfEnd1 attribute. "Bloggs Ltd" manufactures ash pumps" is modeled as an instance of ClassOfRelationshipWithSignature with 'related' = UUID of Bloggs Ltd (instead of 'classOfEnd1') and 'classOfEnd2' = rdl:RDS3940374 (ASH PUMP). classOfEnd2 Thing related Class
ClassOfRelationshipWithRelatedEnd2 dm: IND REL ClassOfRelationship Is a ClassOfRelationship where a particular PossibleIndividual is 'related' in a subtype of ClassOfRelationship, rather than the members of the Class normally referred to from the classOfEnd2 attribute. "Pump with serial number GT5783v can have members of spare part class HN34983 as a part" is modeled as an instance of ClassOfAssemblyOfIndividual with 'classOfPart' = 'HN34983' and 'related' = UUID of 'pump with serial number GT5783v' (instead of 'classOfWhole' = the 'classOfEnd2'). related PossibleIndividual
ComparisonOfProperty dm: IND REL Relationship Is a Relationship that indicates the magnitude of one Property is greater than that of another. The temperature in the room is higher than the outdoor temperature greaterElement Property lesserElement Property
CompositionOfIndividual dm: IND REL Relationship Is a Relationship that indicates that the part PossibleIndividual is a part of the whole PossibleIndividual. Is supertype of ArrangementOfIndividual, TemporalWholePart, Participation, and TemporalBounding. CompositionOfIndividual is transitive. SEAWATER has SALT as a component. part PossibleIndividual whole PossibleIndividual
ConnectionOfIndividual dm: IND REL Relationship Is a Relationship that indicates that matter, energy, or both can be transferred between the members of PossibleIndividual that are connected, either directly or indirectly. None, see the subtypes DirectConnection and IndirectConnection side1 PossibleIndividual side2 PossibleIndividual
ContainmentOfIndividual dm: IND REL RelativeLocation Is a RelativeLocation where the 'located' PossibleIndividual is contained by the 'locator' PossibleIndividual but is not part of it. Note: Other than for RelativeLocation this Relationship doesn't have to be classified for its meaning. myStream is contained by myPump located PossibleIndividual locator PossibleIndividual
Description dm: IND REL RepresentationOfThing Is a RepresentationOfThing that indicates that the PossibleIndividual describes the Thing. The copy of my newspaper describes the situation. NOTE - both classes and individuals can be described. represented Thing sign PossibleIndividual
DimensionOfIndividual dm: IND REL ClassOfRelationship Is a ClassOfRelationship that indicates that each member of the set of lines that are the IndividualDimension are a dimension of the PossibleIndividual. The set of all lines that pass through the centre of a particular circle and end at the circumference of that circle, are a dimension (diameter) of that circle. The particular dimension is indicated by the DimensionOfShape that classifies the DimensionOfIndividual. individual PossibleIndividual individualDimension IndividualDimension
DirectConnection dm: IND REL ConnectionOfIndividual Is a ConnectionOfIndividual that indicates that the 'side1' and 'side2' instances of PossibleIndividual are directly connected via a common spatial boundary. A pipe end to a pump inlet, a wire to a terminal in a junction box. side1 PossibleIndividual side2 PossibleIndividual
Ending dm: IND REL TemporalBounding Is a TemporalBounding that marks the temporal ending of a PossibleIndividual by an Event. The relation that indicates that the PointInTime (a subtype of Event) known as 2021-05-22T14:19:00Z is the end of the temporal part of PossibleIndividual pump P-101 being in a state of operation (the pump was stopped) part Event whole PossibleIndividual
FeatureWholePart dm: IND REL ArrangementOfIndividual Is an ArrangementOfIndividual that indicates that the part is a Feature of the whole. A RAISED FACE X is a Feature of FLANGE Y. part PossibleIndividual whole PossibleIndividual
Identification dm: IND REL RepresentationOfThing Is a RepresentationOfThing that indicates that the PossibleIndividual is an identifier for the Thing (Class or PossibleIndividual) identified. The relationship between 'sign' name tag and 'represented' employee wearing it. represented Class sign PossibleIndividual
IndirectConnection dm: IND REL ConnectionOfIndividual Is a ConnectionOfIndividual that indicates that the 'side1' and 'side2' instances of PossibleIndividual are indirectly connected via one or more other individuals. PRESSURE TRANSMITTER PT-101 is indirectly connected to INSTRUMENT TUBING CONNECTION POINT PE-101 by means of an INSTRUMENT TUBING SYSTEM. side1 PossibleIndividual side2 PossibleIndividual
IndirectProperty dm: IND REL Relationship Is a Relationship between a Property and a PossibleIndividual. The nature of the IndirectProperty is defined by its classification by a ClassOfIndirectProperty. A property is indirect when it does not directly apply to the PossibleIndividual it applies to, but is derived from some process. TO BE DEPRECATED because the PossibleIndividual can be classified with a ClassOfIndirectProperty that is a subtype of proposed QuantifyableCharacteristic (V2.0), and that comes with and instance of ClassOfReferenceToPropertyForDefinition (V2.0) possessor PossibleIndividual property Property
IndividualUsedInConnection dm: IND REL Relationship Is a Relationship that indicates that a PossibleIndividual is used in a ConnectionOfIndividual. For a connection between two flanges a BOLT SET will be or has been used. connection ConnectionOf
Individual
usage PossibleIndividual
IntendedRoleAndDomain dm: IND REL Relationship Is a Relationship that indicates the RoleAndDomain some temporal part of the PossibleIndividual is intended to take with respect to some Activity. Some PossibleIndividual that is classified as a PUMP is intended to play the RoleAndDomain of a PERFORMER AND PUMP in some PUMPING activity. played RoleAndDomain player PossibleIndividual
InvolvementByReference dm: IND REL Relationship Is a Relationship that indicates that a Thing (Class or PossibleIndividual) is referred to, rather than participating, in an Activity. A specification is involved by reference in a Procurement Activity.OR: Supervisor John Doe is involved by reference in a welding activity involved PossibleIndividual involver Activity
LifecycleStage dm: IND REL Relationship Is a Relationship that indicates the interest that a PossibleIndividual has in some PossibleIndividual. MISNOMER, PROPOSED NAME: Stakeholdership. interest PossibleIndividual interested PossibleIndividual
OtherRelationship dm: IND REL Relationship Is a Relationship that is not a member of any of the explicit subtypes of ClassOfRelationship. The meaning of an OtherRelationship is specified by a classification by an instance of ClassOfRelationshipWithSignature. myPump has been manufatured by Bloggs Ltd., the Relationship is classified with IS MANUFACTURED BY. end1 PossibleIndividual end2 PossibleIndividual
Participation dm: IND REL CompositionOfIndividual Is a CompositionOfIndividual that indicates that a PossibleIndividual is a participant in an Activity.
PROPOSED IN V2.0:
Is a CompositionOfIndividual that indicates that a PhysicalObject is a participant in an Activity.
Pump P-101/AN4582483, the implemention of P-101 with asset numbered AN4582483, has begun on 2021-09-21T18:44:00Z to participate in the Activiy A457438 (declared as PUMPING) in the Role of PERFORMER. part PossibleIndividual whole Activity
PossibleRoleAndDomain dm: IND REL Relationship Is a Relationship that indicates the RoleAndDomain some temporal part of the PossibleIndividual is capable to take with respect to some Activity. Acting as an anchor is a possible role for pump with serial number E9GW played RoleAndDomain player PossibleIndividual
Recognition dm: IND REL Relationship Is a Relationship that indicates that a Thing (Class or PossibleIndividual) is recognized through an Activity. Measurement activity #358 recognized that the room was a member of the 20 Celsius Property. recognized PossibleIndividual recognizing Activity
RelativeLocation dm: IND REL Relationship Is a Relationship that indicates that the position of one PossibleIndividual is relative to another. ABOVE, INSIDE, EXTERNAL located PossibleIndividual locator PossibleIndividual
RepresentationOfThing dm: IND REL Relationship Is a Relationship that indicates that a PossibleIndividual is a sign for a Thing. Use only when it is not clear whether definition, description, or identification is meant represented Thing (so either
PossibleIndividual
or Class)
sign PossibleIndividual
ResponsibilityForRepresentation dm: IND REL Relationship Is a Relationship that indicates that the 'controller' PossibleIndividual administers the 'controlled' RepresentationOfThing. The responsibility for ISO 15926 lies with ISO. controlled RepresentationOfThing controller PossibleIndividual
TemporalBounding dm: IND REL CompositionOfIndividual Is an CompositionOfIndividual that indicates that the 'part' Event is a temporal boundary of the 'whole' PossibleIndividual. The ISSUE EVENT 12345 on 2022-04-19 started the temporal part of myDocument with the Status IFC (Issued For Construction). part Event whole PossibleIndividual
TemporalSequence dm: IND REL Relationship Is a Relationship that indicates that one PossibleIndividual precedes another in a temporal sense. An INSTALLATION EVENT precedes a COMMISSIONING EVENT. predecessor PossibleIndividual successor PossibleIndividual
TemporalWholePart dm: IND REL CompositionOfIndividual Is a CompositionOfIndividual that indicates that one PossibleIndividual is a temporal part of another PossibleIndividual. The spatial extent of the temporal part is that of the temporal whole for the period of the existence of the temporal part. Relationships that apply to the whole PossibleIndividual also apply to the temporal parts of the PossibleIndividual, except when the relationships relate to the temporal nature of the whole. So if a PossibleIndividual is connected so are all its temporal parts, but being a WholeLifeIndividual is not inherited by its temporal parts. Since TemporalWholePart is transitive (inherited from its supertype) a hierarchy of temporal parts is possible, with a WholeLifeIndividual at the top. A temporal part of John Doe weighs 81 kg; a temporal part of pump P-101 is in operation. part PossibleIndividual whole PossibleIndividual
UsageOfRepresentation dm: IND REL Relationship Is a Relationship that indicates that the RepresentationOfThing is used by the PossibleIndividual. Usage does not imply responsibility. The XYZ Corp uses an IAEA sign for radiation to mark an area. used RepresentationOfThing user PossibleIndividual
