ISO 15926 TUTORIAL - LESSON 10 - Mapping a (mini)Plant

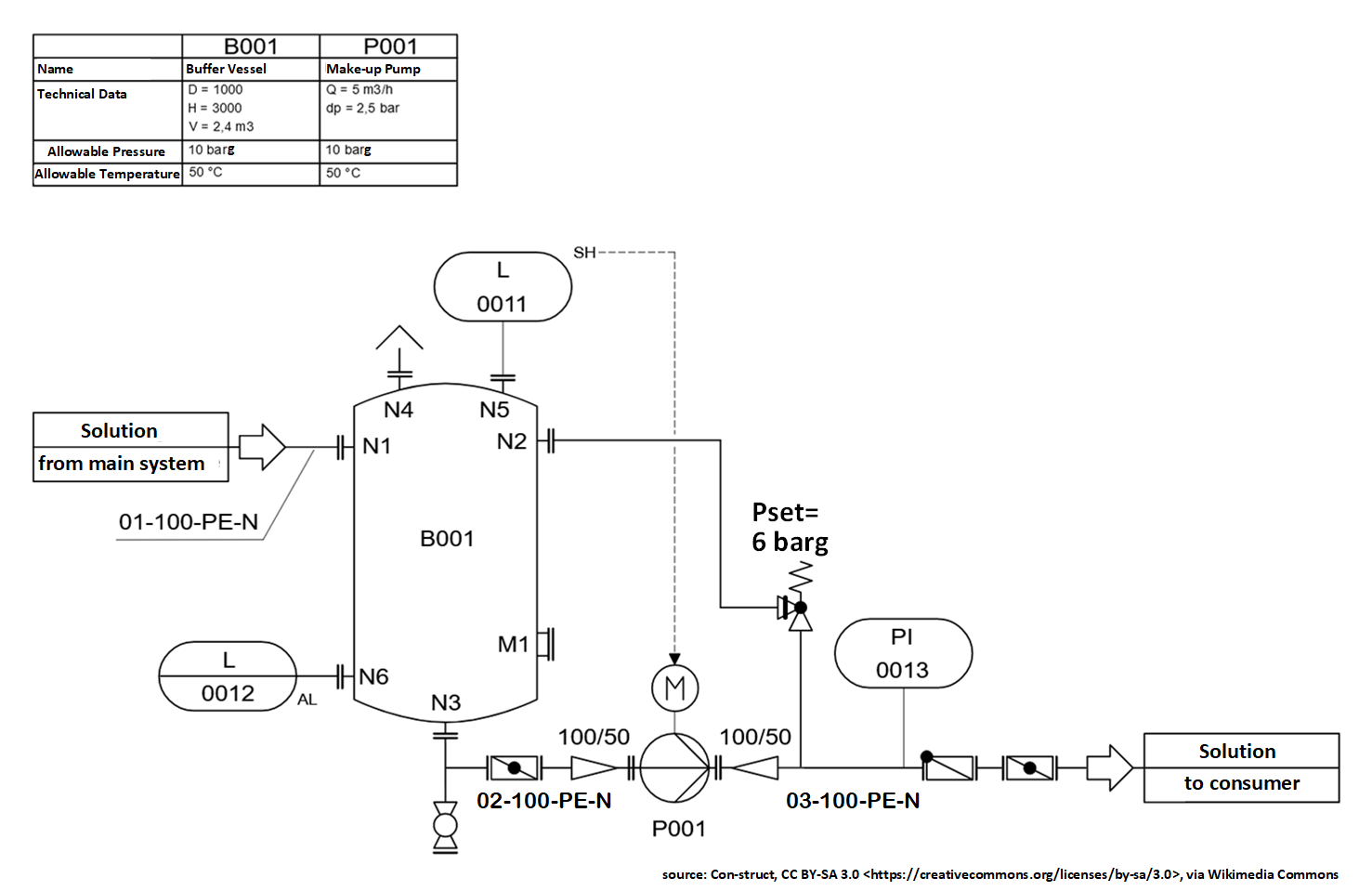

Finally we make a take-off from a small P&ID and write, as homework, some code:



Take-off

First we make a take-off of all objects, and, where not shown on the P&ID, give them a subtag:

NAME ESSENTIAL TYPE SPECIALIZED TYPE Class|Ind? Act|NonAct Part of
B001 VESSEL ATMOSPHERIC VESSEL, VERTICAL VESSEL Individual NonActual
B001-N1 FLUID PORT FLANGED NOZZLE Individual NonActual B001
B001-N2 FLUID PORT FLANGED NOZZLE Individual NonActual B001
B001-N3 FLUID PORT FLANGED NOZZLE Individual NonActual B001
B001-N4 FLUID PORT FLANGED NOZZLE Individual NonActual B001
B001-N4-COVR VENT COVER   Individual NonActual
B001-N5 FLUID PORT FLANGED NOZZLE Individual NonActual B001
B001-N6 FLUID PORT FLANGED NOZZLE Individual NonActual B001
B001-M1 MANHOLE   Individual NonActual B001
L0011 LEVEL LOOP   Individual NonActual
LSH0011 LEVEL SWITCH   Individual NonActual L0011
L0012 LEVEL LOOP   Individual NonActual
LSL0012 LEVEL SWITCH   Individual NonActual L0012
LLA0012 WARNING ALARM LOW PORT   Individual NonActual L0012
P001-SYS PUMP SYSTEM   Individual NonActual
MCC-P001 MOTOR CONTROL CENTRE   Individual NonActual P001-SYS
PM001 MOTOR ELECTRIC MOTOR Individual NonActual P001-SYS
P001 BARE PUMP CENTRIFUGAL PUMP Individual NonActual P001-SYS
P001-IN PIPE FLANGE   Individual NonActual P001
P001-OUT PIPE FLANGE   Individual NonActual P001
01-100-PE-N PIPING SYSTEM   Individual NonActual
01-100-PE-N-OUT PIPE FLANGE   Individual NonActual 01-100-PE-N
02-100-PE-N PIPING SYSTEM   Individual NonActual
02-100-PE-N-IN PIPE FLANGE   Individual NonActual 02-100-PE-N
02-100-PE-N-1 PIPING NETWORK NODE   Individual NonActual 02-100-PE-N
02-100-PE-N-2 DRAIN VALVE   Individual NonActual 02-100-PE-N
02-100-PE-N-3 BLIND FLANGE   Individual NonActual 02-100-PE-N
02-100-PE-N-4 BLOCK VALVE   Individual NonActual 02-100-PE-N
02-100-PE-N-5 PIPE REDUCER   Individual NonActual 02-100-PE-N
02-100-PE-N-OUT PIPE FLANGE   Individual NonActual 02-100-PE-N
03-100-PE-N PIPING SYSTEM   Individual NonActual
03-100-PE-N-IN PIPE FLANGE   Individual NonActual 03-100-PE-N
03-100-PE-N-1 PIPE REDUCER   Individual NonActual 03-100-PE-N
03-100-PE-N-2 PIPING NETWORK NODE   Individual NonActual 03-100-PE-N
03-100-PE-N-3 INSTRUMENT CONNECTION POINT   Individual NonActual 03-100-PE-N
03-100-PE-N-4 CHECK VALVE   Individual NonActual 03-100-PE-N
03-100-PE-N-5 BLOCK VALVE   Individual NonActual 03-100-PE-N
PSV0014 PRESSURE RELIEF DEVICE   Individual NonActual
PI0013 PRESSURE GAUGE   Individual NonActual
04-100-PE-N PIPING SYSTEM   Individual NonActual
04-100-PE-N-IN PIPE FLANGE   Individual NonActual 04-100-PE-N
04-100-PE-N-OUT PIPE FLANGE   Individual NonActual 04-100-PE-N

Homework

For above items that are marked yellow:

  1. write their declaration
  2. classify them where required with the Class in column 3 (use ClassificationOfIndividual),
  3. define the whole-part assemblies (use AssemblyOfAnIndividual).

Connections

Then we define the interconnections between these objects:

CONNECTIONS (in stream direction)
FROM TO TYPE Direct | Indirect
01-100-PE-N-OUT B001-N1 FLANGED CONNECTION Direct
04-100-PE-N-OUT B001-N2 FLANGED CONNECTION Direct
B001-N3 02-100-PE-N-IN FLANGED CONNECTION Direct
B001-N4 B001-N4-COVR FLANGED CONNECTION Direct
B001-N5 LSH0011 FLANGED CONNECTION Direct
LSH0011 MCC-P001 SIGNAL TRANSMISSION CONNECTION Indirect
MCC-P001 PM001 POWER TRANSMISSION CONNECTION Indirect
PM001 P001 DRIVE-TO-DRIVEN CONNECTION Direct
B001-N6 LSL0012 FLANGED CONNECTION Direct
LSL0012 LAL0012 SIGNAL TRANSMISSION CONNECTION Indirect
02-100-PE-N-IN 02-100-PE-N-1 INDIRECT PIPING CONNECTION Indirect
02-100-PE-N-1 02-100-PE-N-2 INDIRECT PIPING CONNECTION Indirect
02-100-PE-N-2 02-100-PE-N-3 FLANGED CONNECTION Direct
02-100-PE-N-1 02-100-PE-N-4 INDIRECT PIPING CONNECTION Indirect
02-100-PE-N-4 02-100-PE-N-5 INDIRECT PIPING CONNECTION Indirect
02-100-PE-N-5 02-100-PE-N-OUT INDIRECT PIPING CONNECTION Indirect
02-100-PE-N-OUT P001-IN FLANGED CONNECTION Direct
P001-OUT 03-100-PE-N-IN FLANGED CONNECTION Direct
03-100-PE-N-IN 03-100-PE-N-1 INDIRECT PIPING CONNECTION Indirect
03-100-PE-N-1 03-100-PE-N-2 INDIRECT PIPING CONNECTION Indirect
03-100-PE-N-2 PI0013 INSTRUMENT TUBING CONNECTION Indirect
03-100-PE-N-2 PSV0014 INDIRECT PIPING CONNECTION Indirect
03-100-PE-N-2 03-100-PE-N-3 INDIRECT PIPING CONNECTION Indirect
03-100-PE-N-3 03-100-PE-N-4 INDIRECT PIPING CONNECTION Indirect
PSV0014 04-100-PE-N-IN FLANGED CONNECTION Direct
04-100-PE-N-IN 04-100-PE-N-OUT INDIRECT PIPING CONNECTION Indirect

Obviously this information shall be automatically generated by the P&ID software, any time that a new revision has been issued. But unfortunately the P&ID software suppliers are not interested, as far as I know.

Homework

Write one template instance for each type of connection that is marked yellow, using ClassifiedDirectConnectionOfTwoIndividuals and ClassifiedIndirectConnectionOfTwoIndividuals.

Properties

Finally we write templates for the properties listed in the left upper corner of the P&ID and for the relief valve:

POSSESSOR INFORMATION ABOUT NAMED OBJECT VALUE UNITS
B001 DIAMETER 1000 MILLIMETRE
B001 HEIGHT 3000 MILLIMETRE
B001 NOMINAL CAPACITY (volume) 2.4 METRE CUBED
B001 UPPER LIMIT ALLOWABLE WORKING PRESSURE 10 BAR GAUGE
B001 UPPER LIMIT ALLOWABLE TEMPERATURE 50 DEGREE CELSIUS
P001-STRM NORMAL VOLUMETRIC FLOW RATE 5 METRE CUBED PER HOUR
P001 DIFFERENTIAL HEAD 2.5 BAR
P001 UPPER LIMIT ALLOWABLE WORKING PRESSURE 10 BAR GAUGE
P001 UPPER LIMIT ALLOWABLE TEMPERATURE 50 DEGREE CELSIUS
PSV0014 SET PRESSURE 6 BAR GAUGE

Homework

Write all ten template instances to represent above information. Keep in mind that all above information is about the Asset Requirements Class, so the templates are for classes.

It is true that the P&ID lists this information for the individuals B001 and P001, but, as we say in Dutch: "Papier is geduldig" (paper is patient).

For clarification: These properties are requirements that must be met by the ActualIndividual and, because of their classification with the Asset Requirements Class, also by the NonActualIndividual.
ActualIndividuals ARE what they are, with characteristics that are almost 100% certain different from the requirements, of better said: not exactly the same.

Classes have range properties, individuals have point properties. Even a requirement for 316SS has a range, because when the supplier offers a better material for a 316SS price that may be acceptable. But when an individual is made of 316SS, THAT IS A FACT. The only ‘range’-like aspect is in the accuracy of measurements or material analyses.

So the P&ID tells what, topologically, the plant looks like. The fact that P&IDs also show equipment and stream data is a relic of the old days, when we didn't have computers, so that documents also served as data base. The definition of what the characteristics of the plant items shall be is given by the Asset Requirements Class, usually defined by a technical specification (commodity materials by a Product Specification or an acceptable standard).

The first two properties are instances of ClassOfShapeDimension (use ClassOfIndividualHasDimensionedShapeWithValue ), and the rest are instances of ClassOfIndirectProperty
(use ClassOfIndividualHasIndirectPropertyWithMaximumValue for the ‘UPPER LIMIT’ properties, and ClassOfIndividualHasIndirectPropertyWithValue for the rest ).
Assume that the tags CO-B001 and CO-P001 (CO = ClassOf) have already been declared and that B001 and P001 are their respective members. Furthermore P001-STRM is the Liquid Stream through P001, with CO-P001-STREAM to attribute the above value to.

In a next revision you can find the correct code, allowing you to compare.
